The working principle of slip rings
The slip rings is responsible for connecting the rotating body,Electrical parts that transmit energy and signals.Distinguish by transmission medium,The rings are divided into electroslip rings, fluid slip rings and smooth rings, which can also be colloquially referred to as "rotationally connected" or "rotationally connected".

The slip ring is usually installed in the center of rotation of the device,It is mainly composed of rotation and rest. The rotating part connects the rotating structure of the device and moves with it, known as the "rotor".The stationary part of the device is connected to the fixed structure of the energy, known as the "stator".

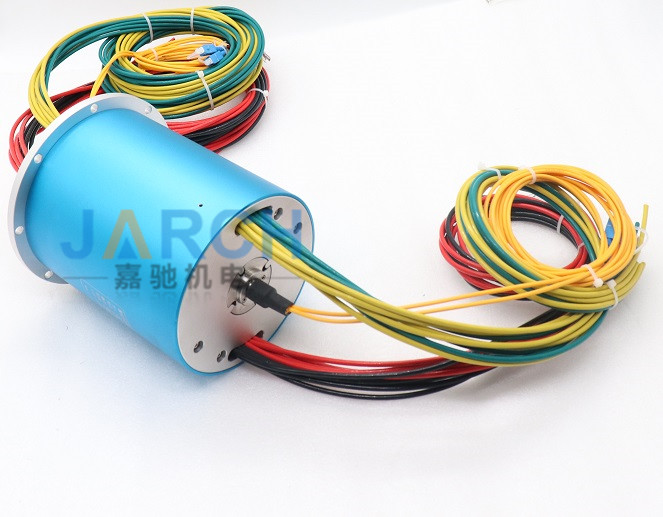

IMG_7798_fuben
The slip ring can be used in any electromechanical system field that rotates 360° continuously to transmit power supply and data signal,Its principle is to realize the current, data signal or image and power transmission of the two relative rotating mechanism of the precision transmission device.It is often used for 360° unlimited continuous rotation, requiring the transmission of electrical and data signals from a fixed position to a rotating position.
component and use：
Its structure is mainly composed of elastic material (brush), sliding contact surface material (conductive ring, precision small steel bearing, insulating plastic material, resin bonding material.
The electric brush is made of precious metal alloy material, and has symmetrical double contact with the "V" and "concave" groove of the conducting ring. The elastic pressure of the brush and the sliding contact with the conducting ring groove are used to transmit signals and current.

It is a key component of electromechanical equipment in various industries, such as precision rotating table, cable equipment, wind power generation, single crystal furnace, filling and packaging machinery, automatic revolving door, etc.

Shenzhen JARCH Electronics Technology Limited is a professional slip rings manufacturer,have more than 10years experiences,focus on production of high quality slip rings,production cheap slip rings,if you have any questions,please feel free contact us.
