OVERVIEW

The thermocouple slip rings are developed for working in high temperature environment.
It plays the role to transmit precise signals, low current, high current and high voltage. Generally speaking, the normal working temperature of slip ring is -40 ℃ ～ 80 ℃.
If the temperature is higher than normal, the working life will be decrease rapidly and even cause direct damage..So the thermocouple slip rings is specially for the high temperature working environment, The thermocouple slip ring can be used continuously in a high temperature environment for a long time without affecting its electrical performance

Thermocouple   Slip Ring Series No.:JSR-HT010-XX
Rings
2~6
Current
2A/5A/15A/20A/30A(optional)
Voltage
mV~380 VDC/VAC
Max speed
500RPM
Through bore   size
10mm
Overall   diameter
55mm
Housing   Material
Aluminium   Alloy
Torque
0.05N.m;+0.03N.m/6rings
Working life
50million
Contact   material
Precious   Metal:Gold-Gold
Electrical   noise
<5 mΩ
Contact   Resistance
<2mΩ
Dielectric   strength
1000VDC@50Hz
Lead Wire
UL Teflon®   Awg26,Awg22,Awg16
Insulation   resistance
500MΩ@600VDC
Lead Lengths
300mm(12")
Operating   Temp.
120℃ (Optional)
Protection
IP54 (IP68   Optional)
Materials
Lead Free,   ROHS
Certified
CE,FCC



Options (Based on requirements)

1)Size(Inner Diameter, Outer Diameter, Length)
2)Current(mas)
3)Voltage [AC/DC] (max.)
4)Circuits quantity
5)Cable Length
6)Temperature Range
7)Operating Speed (max.)

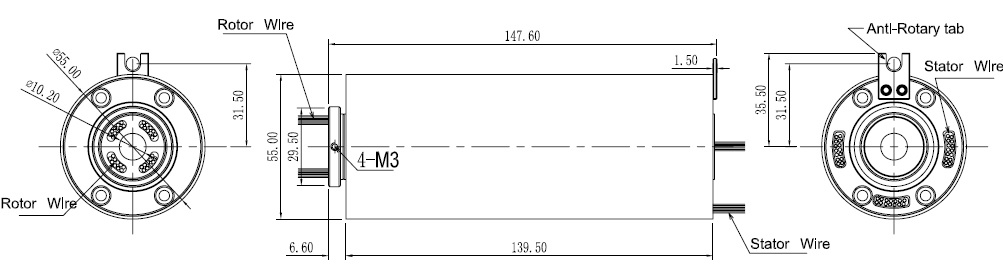

DIMENSION DRAWING

JSR-TH010

It is only a drawing example here. Normally it is OEM models as our customer's request,
Every design is based on different requirement.
The size of  slip rings  are based on the different working environment

INSTALLATION INSTRUCTION

INSTALLATION 02
Installation


MODEL NO.

20140905094705_75357



APPLICATION FIELD

1). Industrial machinery: machining center, winding machine, processing machine
2). Rotary table: battery machinery, filling machinery, bottle blowing machinery, rotary printing machinery
3). Cable drum: port machinery, heavy boom, construction machinery, control tower
4). Test equipment: centrifugal test bench, separator
5). Robots: packaging equipment, stacker, process control equipment, emergency lighting equipment
6).Exhibition  or display equipment: car booth, revolving door, product booth, revolving restaurant


PACKAGE & DELIVERY

Package is by carton or by wooden.
Delivery: By Air, by Express, or by sea. Up to customers’ request.

It is only some series model samples here. If it can not find the model you need.
Contact us here. Let us know with your requirements. Our JARCH designer & engineer team have the full experiences to custom design and produce high reliable slip rings/rotary unions/rotary joints/connectors for you.
